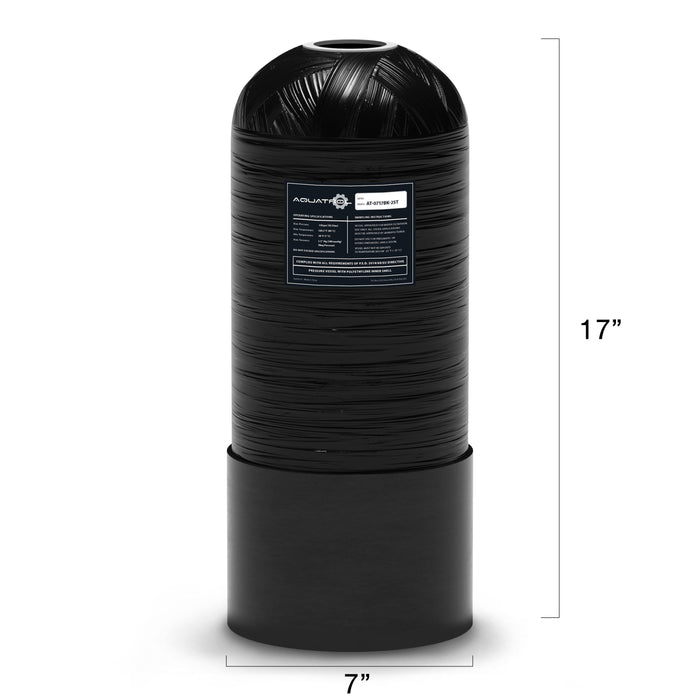

Aquatrol AT-0717BK-25T 7 x 17 Inches PG Pressure Tank - 2.5” T Connection, Standard Base, Black - Default Title -

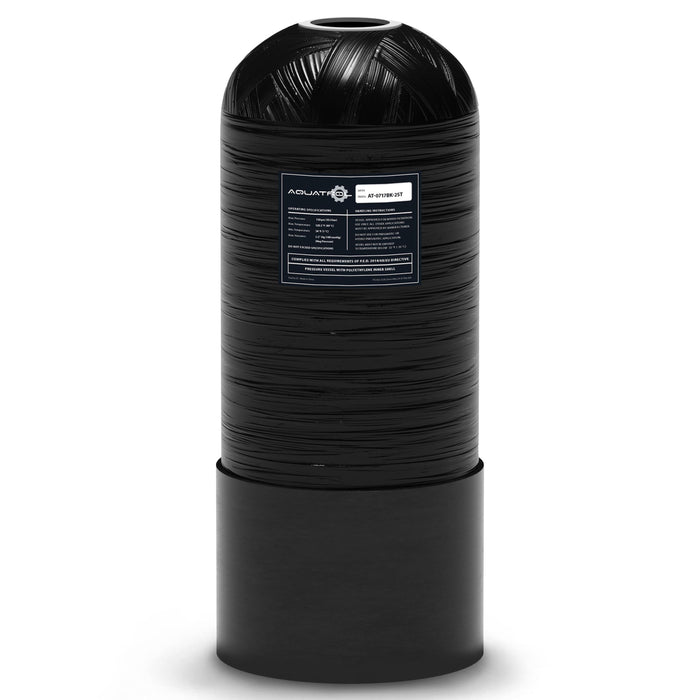

Aquatrol AT-0717BK-25T 7 x 17 Pg Pressure Tank - 2.5” T Connection, Standard Base, Black
Aquatrol™ Pressure Tanks offer a reliable and cost-effective alternative for all your light residential to heavy-duty commercial applications. Aquatrol tanks are available in various sizes ranging from 0713 to 6383, and all tanks are certified by NSF/ANSI Standard 61. Aquatrol proudly offers a 10-year warranty on tanks from 6″ – 13″ (5-year warranty on all tanks from 14″ – 63″).
Aquatrol Pressure Tanks provide outstanding performance and durability characteristics while offering exceptional cost-saving benefits. With Aquatrol, there really is no need to choose a higher-priced alternative.
Features and Benefits
Cost Effective Reliability.
Easy Handling and Installation.
Standard and Tripod Base.
Outstanding Performance and Durability.
NSF/ANSI Standard 61 Certified.
Operating Parameters
Maximum Operating Pressure: 150 psi (10.5 bar)
Maximum Operating Temperature: 120 °F (49 °C)
Min. Temperature: 34 °F (1 °C)
Maximum Vacuums: 140 mmHg (5.5″ Hg)
Design Parameters
Cycle Test
Safety Factor
Safety Factors
100,000 Cycle Test without leaks
Safety Factor 4:1
Minimum burst at 600 psi
Warranty
10 Year Warranty for 7″ vessels
